To measure for pinch pleat curtains, establish the finished coverage width, choose the number of panels, then measure the drop from the correct hanging point. For LuxDrape pleated panels, the fabric used to form the pleats is already built into the header. Do not double your finished width again as though you were buying flat, unpleated fabric.
The most important decisions happen before you enter a size: which hardware you will use, whether the panels must close, and whether the product is priced per panel. Work through these steps with your selected header and hardware in view.
Quick width check before you order
Finished width per panel = confirmed total coverage ÷ number of panels. For a 100-inch span with two equal panels and no additional hardware allowances, start with 50 inches of finished width per panel and quantity two. Confirm center overlap and side returns for your hardware separately. Do not turn 50 inches into 100 inches by multiplying for fullness; the fabric for LuxDrape's sewn pinch pleats is already included.
Use the curtain measurement calculator for your header, hardware and hem position. Then enter width and height per panel on Florence linen-blend pleated drapes, or compare the pleated drape collection. Check whether the chosen product is sold individually before setting the quantity.

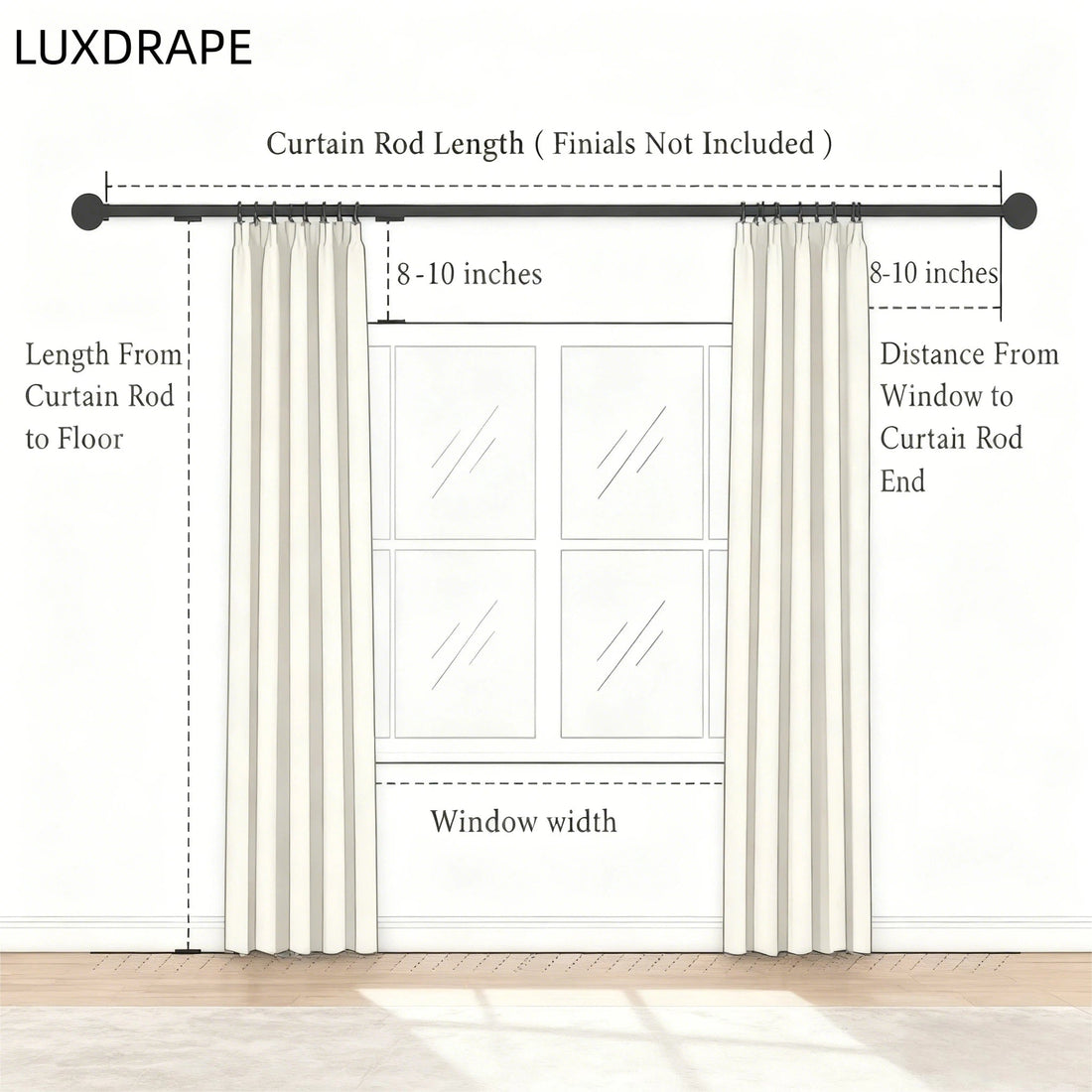

1. Measure Your Rod or Track Width
Measure the usable curtain coverage along the rod or track, excluding decorative finials. Glass width alone is not enough: the panels may also need to cover the trim and park beside the window when open.
If hardware is not installed, first plan its position. Check the wall space on both sides, the mounting surface, any center supports and where the open fabric will stack. There is no benefit in choosing a wider rod if the stacked panels will block a door, cabinet or neighboring window.
For closing curtains, record the required center meeting point and side returns with the selected hardware. A basic rod-span measurement may need additional allowance for a particular return or overlap arrangement. Confirm those details rather than adding an arbitrary percentage to every order.
2. Understand Fullness Before Calculating Width
Finished pleated width and the amount of fabric used are different measurements. LuxDrape's current header specifications list 200% fullness for double pinch pleats and 250% for triple pinch pleats. That fabric creates the sewn-in pleats; it is not a second width multiplier for you to apply to the finished order dimensions.
For example, if the confirmed total finished coverage is 80 inches, a symmetrical pair starts at 40 inches of finished width per panel. This is an arithmetic example, not a universal recommendation: confirm any extra coverage for the chosen hardware before submitting the order.
The pleated header guide measures finished panel width from the first pleat to the last pleat. The loose bottom hem is not the reference for ordering a pleated heading. Use the current curtain measurement calculator with your actual header and hardware to check the route.
3. Calculate Your Panel Width and Quantity
| Confirmed arrangement | Starting calculation | Check separately |
|---|---|---|
| Two equal closing panels | Total finished coverage divided by two | Center overlap and side returns |
| One closing panel | Full finished coverage in one panel | Hardware travel and parking space |
| Stationary side panels | Plan the displayed folds at each side | These may not cover the opening |
LuxDrape's Florence pleated drapes are sold individually. An order for a pair needs the correct dimensions for each panel and quantity two. “80 inches wide” can mean very different things if it is accidentally entered twice instead of split between the panels.
4. Measure Curtain Length from the Correct Hanging Point
Choose the exact header and suspension before measuring. For pinch pleats hanging on rings, LuxDrape's product instructions use the bottom of the rings as the drop reference. For a track or hook arrangement, follow the corresponding measuring route and check where the curtain will actually be supported; do not automatically measure from the top of the track.
If the hardware is not installed, mark the proposed position and use the measurement support guide. An estimated ring drop is not a substitute for checking the actual rings once they are available.
Measure to the floor at several points across the span. Floors and ceiling lines are not always level. Record the measurements and decide whether you want a consistent clearance or a deliberately relaxed hem.
Choose the hem position for daily use
- Hover: leaves the hem clear of the floor for easier cleaning and movement.
- Touch: lets the hem meet the floor without a long pool of fabric.
- Break or puddle: adds fabric on the floor for a decorative effect, with more fabric to move when cleaning.
Adjustable pin hooks help position the header within the hardware's intended adjustment range. They do not correct a substantially wrong curtain length. Confirm the actual hook arrangement instead of relying on an assumed adjustment allowance.
5. Special Notes for Large or Tall Windows
For a double-height wall, measure the actual drop rather than calculating from ceiling height. Consider who will open the curtains, whether the rod or track can carry the lined panels, and whether the fabric can stack without covering too much glass.
Ask about the selected fabric's available finished size, any seams and the effect of lining on bulk. A maximum size shown for one fabric or header does not automatically apply to another. Do not split a wide order into extra panels without planning the visible joins and how they will operate.
Before You Place a Custom Order
- Confirm the fabric, lining, header and hanging hardware.
- Label dimensions as width and height per panel.
- Check the total coverage, returns, meeting point and number of panels.
- Record the measurement starting point and chosen floor clearance.
- Check mounting support and the route of any moving panels.
Once those details are settled, compare the Florence pleated linen-blend drapes for a slub-textured look, or browse the pleated curtain collection for other fabric characters. Choose the fabric in your room before finalizing a large custom order.
FAQ
Do I multiply pinch pleat curtain width by two?
Not when ordering LuxDrape's finished pleated width. The fabric fullness is built into the selected sewn header. Confirm coverage and hardware allowances separately.
Does one panel mean one pair?
No. The linked Florence product is sold per panel. A pair requires two panels, each with its own correct finished dimensions.
Should I order before installing the rod?
You can plan before installation, but the proposed hardware position, suspension and coverage must be clear. Recheck actual dimensions whenever possible before submitting made-to-measure sizes.
